Venus Bliss MAX™ Complete 360° Body Shaping Solution

The Advanced 3-in-1 Solution Targeting Fat, Muscle, and Skin Body Treatments

Venus Bliss MAX™ is an advanced three-in-one solution for body treatments. The workstation targets fat, muscle, and skin with three distinct technologies in an effective and comfortable manner, maximizing results and patient satisfaction by tailoring the right modality for each indication.

Speak to an expert

product header

Venus Bliss MAX™ Is Able to Provide the Following to Your Practice

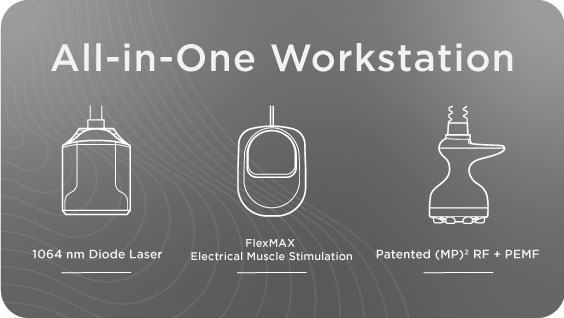

ALL-IN-ONE WORKSTATION

Three powerful technologies – 1064 nm diode laser for non-invasive lipolysis, electrical muscle stimulation (EMS) for muscle toning, and proprietary (MP)2 technology for skin and cellulite.

COMPLETE BODY TREATMENTS

Exclusive TriBody Program – Increase potential patient base by providing individual or combination treatments for a 360° approach to body contouring.

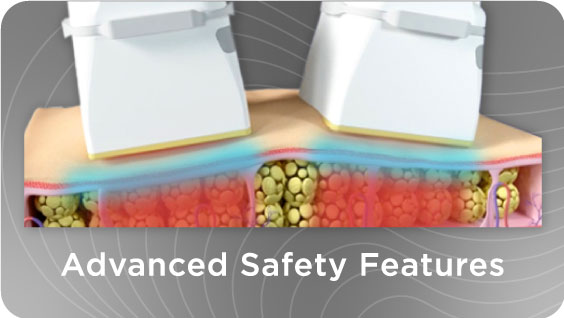

ADVANCED SAFETY FEATURES

Effective and comfortable – Diode lasers are equipped with advanced safety features & contact cooling, FlexMAX offers adaptive algorithms & adjustable parameters, and (MP)provides real-time thermal feedback.

BEST-IN-CLASS REVENUE GENERATOR

Proven patient demand and revenue potential - IoT collects treatment and demographic information that will help providers with optimizing their business practices and provide clinical insights for improved ROI.

applicator specs

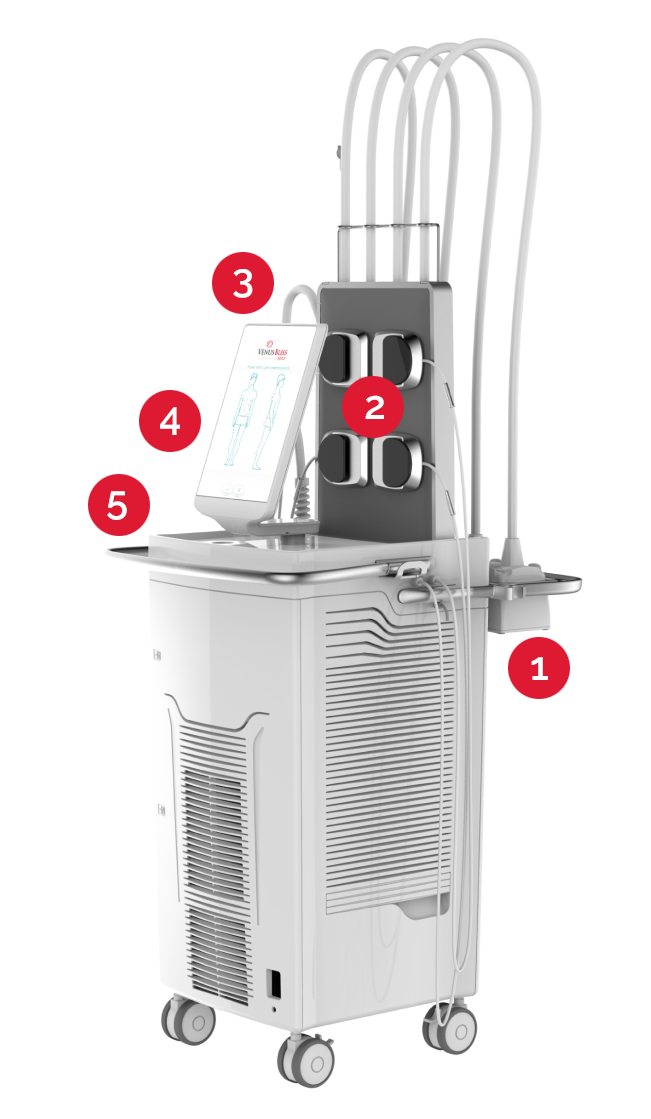

Key Features

In addition to the three best-in-class technologies, Venus Bliss MAX™ is also equipped with additional features that can improve ease-of-use for operators and clinical outcomes for patients.

Energy is powerfully delivered to the subcutaneous tissue with a maximum energy output of 1.4 W/cm2 while cooling mechanisms continuously chill the skin. Four 1064 nm diode laser applicators with 36 cm2 spot size cover 50% more treatment area than other non-invasive laser lipolysis systems. Each applicator can be activated individually and placed in various configurations on a belt for hands-free operation.

Engineered to deliver electrical pulses in a controlled and accurate manner, the FlexMAX applicators feature a duo electrode design that contains the flow of energy. Differing from magnetic technologies, EMS enables a targeted delivery to the muscle nerves from one electrode to the other, causing involuntary contractions. For different configurations and coverage over the targeted muscle area, each of the 4 applicators can be individually activated or used together.

Setting itself apart from monopolar and bipolar modalities, Multi-Polar Radio Frequency is regarded as the more versatile option for improved efficacy and patient comfort. This modality is designed to distribute heat more homogeneously, reaching therapeutic temperatures quickly, and enabling a very comfortable treatment and consistent results. For a greater effect on cellulite and efficient treatment of large body areas, the eight electrodes are spaced 7.5 cm apart, allowing the heat to reach all layers of the dermis.

Venus Bliss MAX™ is equipped with an advanced connectivity module, enabling "Internet of Things" (IoT) capability - the latest data collection technology to enhance business operations. IoT collects treatment and demographic information that will help providers with optimizing their business practices and provide clinical insights.

Venus Bliss MAX™ features an intuitive User Interface (UI) that clearly displays every parameter the operator needs to deliver safe and effective treatments for each of the three modalities. Applicator contact and status signals are included on the diode laser screen, specific programs are built for each body muscle and its associated combinations under the FlexMAX mode, while ATC and a real-time temperature graph are on the (MP)2 screen. All in all, its simplistic design and easy-to-follow navigation allow for effortless customization and operator control during the treatment.

Three Modalities on One Workstation

Target fat, muscle, and skin effectively and comfortably. Maximize results and patient satisfaction by tailoring the right modality for each indication.

vbl diod

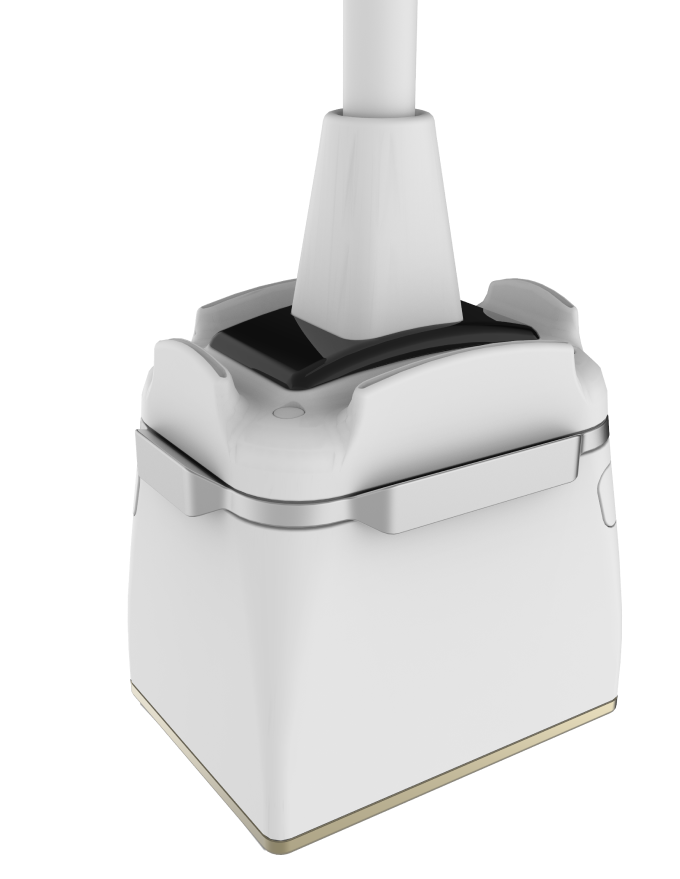

1064 nm Diode Laser Technology

Gold Standard for Fat Reduction


Venus Bliss MAX™ diode laser technology delivers effective, comfortable, and efficient non-invasive laser lipolysis treatments by heating the entire targeted subcutaneous layer to the treatment temperature unlike other thermal fat reduction technologies. The 1064 nm wavelength is optimal for penetrating into the adipose tissue layer, with homogeneous energy distribution capabilities. Extended heating cycles elevate the targeted fat layer temperature to 42-46ºC, effectively damaging and destroying fat cells in just 25 minutes per treatment. The apoptotic fat cells are then eliminated through the body’s lymphatic system over time.

  • Large spot size: 6 cm x 6 cm or 36 cm2
  • Uniform energy distribution: prevents hot spot and ensures patient comfort
  • Advanced cooling system: skin-contact water cooling ensure epidermis and dermis are chilled
  • Proven clinical results: up to 41% reduction in adipose layer thickness

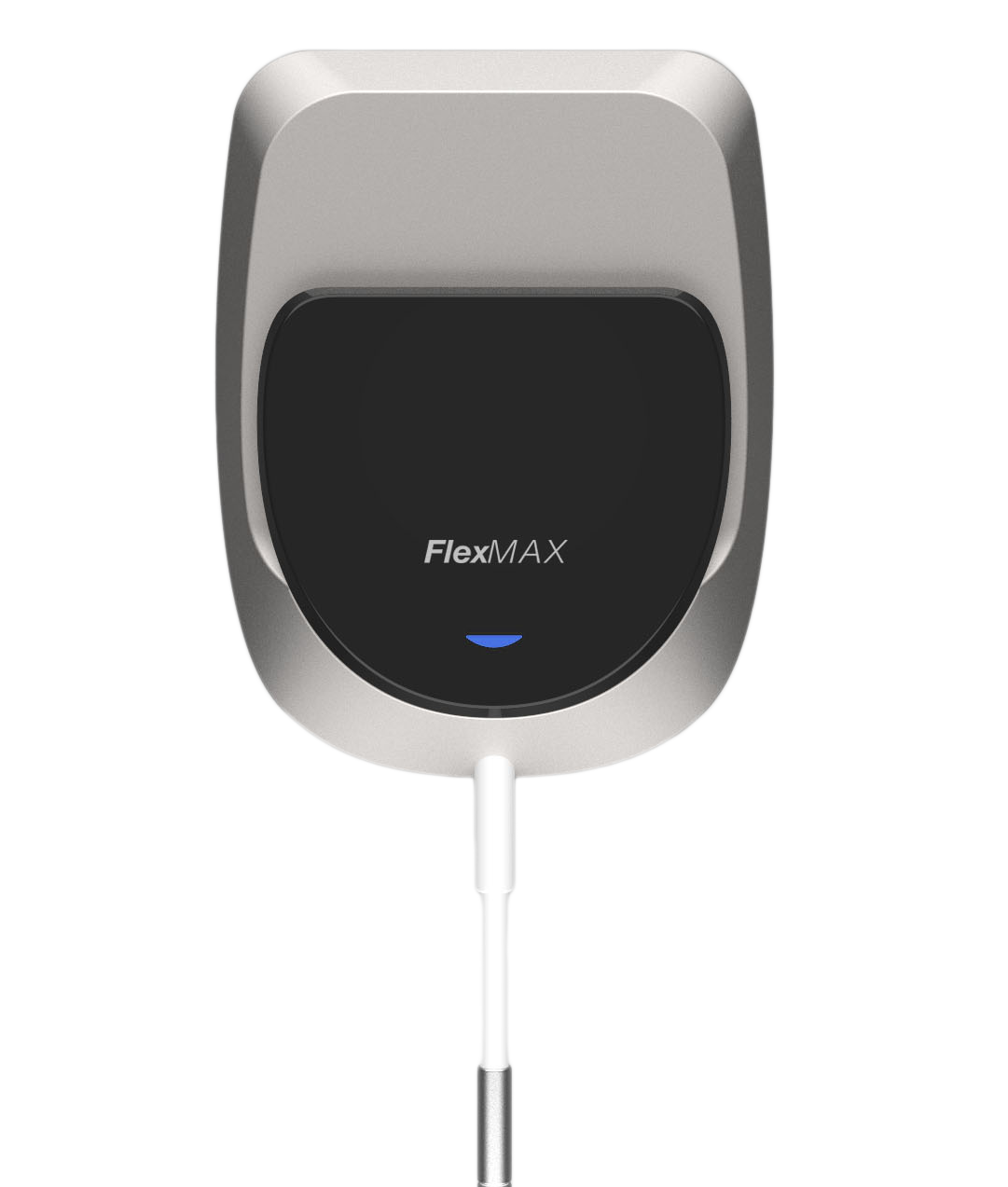

Adaptive FlexMAX EMS Machine Technology

Best-In-Class Electrical Muscle Stimulation Machine


The FlexMAX EMS modality offers an unprecedented solution to the muscle category. Controlled and precise energies are delivered uniquely to muscle groups via best-in-class electrical muscle stimulation. The muscles are safely activated without heating the surrounding tissue. Paired with specific pulse durations by muscle group, performance-informed smart training programs and advanced adaptive algorithms, each treatment is fully personalized and mimics a real training session that can build intensity over time. FlexMAX EMS enables effective and comfortable treatment programs regardless of the patients’ fitness level, resulting in stronger and more defined muscle appearance.

  • Hassle-free, hands-free operation: Easy-to-use Velcro belts and conductive gel application
  • Adaptive Mode
    • AdapTarget: 7 Targeted Muscle Groups → Personalization
    • AdapTrain: Smart Training Programs → Efficiency & Efficacy
    • AdapTensity: Adaptive Parameters → Comfort & Safety

vbl diod

vbl diod

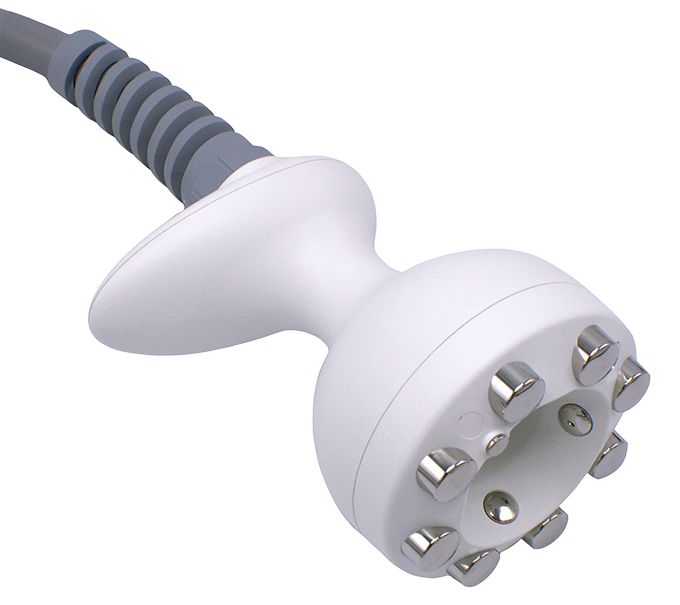

Proprietary (MP)2 Technology

Patented (MP)² Technology with Proven Results


(MP)2 technology represents an innovative combination of Multi-Polar Radio Frequency (RF) and Pulsed Electro Magnetic Fields (PEMF) to yield synergistic effects during treatments. This patented technology can reduce cellulite for smoother, firmer-looking areas while also resulting in tighter skin appearance. This is a proven, comfortable treatment with high customer satisfaction (92% clinical reliability rating)1 and more than 12,000 units installed globally.

  • Eight electrodes are spaced 7.5 cm apart, allowing the heat to reach all layers of the dermis
  • Real-time temperature control: ensures consistency and predictability
  • VariPulse™ technology:
    • Positive and negative pressure enhances the penetration and effects of RF energy
    • Mechanically increases blood flow and lymphatic drainage in the treated tissues

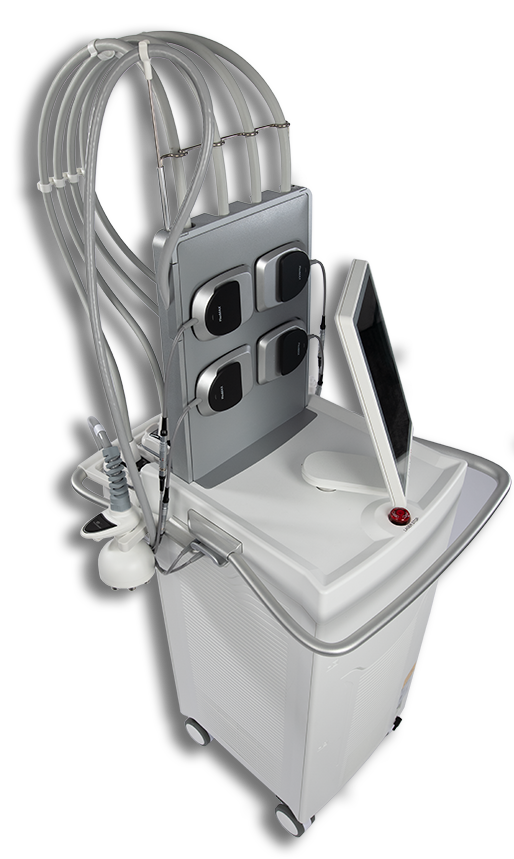

Tech Specs

DIODE LASER APPLICATORS

Light Source

Diode Laser

Wavelength

1064 ± 10 nm

Max. Power

50 W per applicator, 200 W in total

Power Density

Up to 1.4 watts/cm2

Spot Size

36 cm2 (6 cm x 6 cm)


FlexMAX APPLICATORS

Output Waveform

Symmetrical Biphasic

Pulse Width

500 – 2500 μSec

Pulse Frequency

1 - 1000 Hz

Output Channel Type

Synchronous


(MP)2 APPLICATOR

Max. RF Output Power

150 Watts

Output RF Frequency

1 MHz

Constant Magnetic Field

15 Gauss

Magnetic Pulse Frequency

15 Hz

Suction Levels

4

 specs

Clinical Results

Before & After Photos

Clinical Evaluation of the Safety and Efficacy of a 1060-nm Diode Laser for Non-Invasive Fat Reduction of the Abdomen

Authors: Mikaela Kislevitz, MD, BSN, RN, Christine Wamsley, BA, Alison Kang, MD, Suzanne Kilmer, MD, John Hoopman, CMLSO, Jennifer Barillas, BS, Jeffrey M Kenkel, MD

Publication: Aesthetic Surgery Journal

Published Date: February 2021

DOWNLOAD

JOIN THE MOVEMENT

GET STARTED TODAY!

SPEAK TO AN EXPERT

INDICATIONS FOR USE:

*The Venus Bliss MAX™ system includes 3 unique technologies. The diode laser applicators are cleared by the FDA for non-invasive lipolysis of the abdomen, flanks, back, and thighs in individuals with a BodyMass Index (BMI) of 30 or less. The (MP)2 applicator is for improvement of local blood circulation and temporary reduction of cellulite. The FlexMAX applicators are intended for muscle conditioning to stimulate healthy muscles.

REFERENCES:

  1. 2020 Venus Concept Post-Marketing Questionnaire, data on file.
